Setup TCP IP communication on UX301 Device

Passwords will be provided by SMRT1

Find / set the static IP of your device on the SMRT1 Cloud interface

https://smrt1.cloud/machines

Find your machine, click edit, and scroll down to the config area to MONERIS.
You should see in_use and tcp checkboxes. Make sure these are checked.

Input 192.168.1.201 in the IP field.

NOTE: this IP is arbitrary, and can be changed later if necessary.

Setting static IP on the UX301

Access the UX301 device's supervisor screen by pressing the little button on the back.

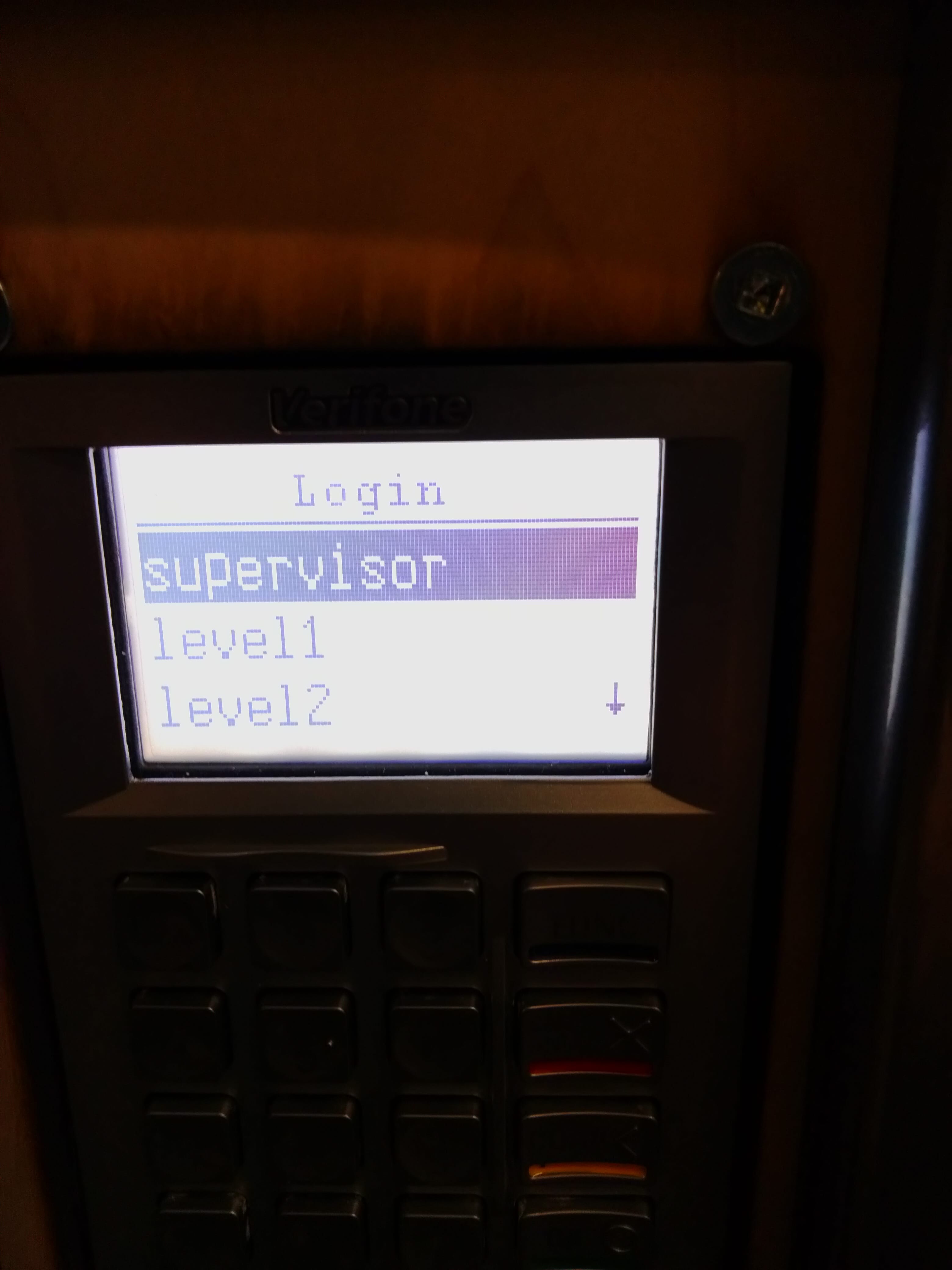

Select supervisor and enter ******* for the password via the pin pad.

NOTE: If ******* does not work, try: *****, ******* or *******.

Now in supervisor:

Administration -> Network -> Ethernet (Hit 2 4 2 on the pin pad for short).

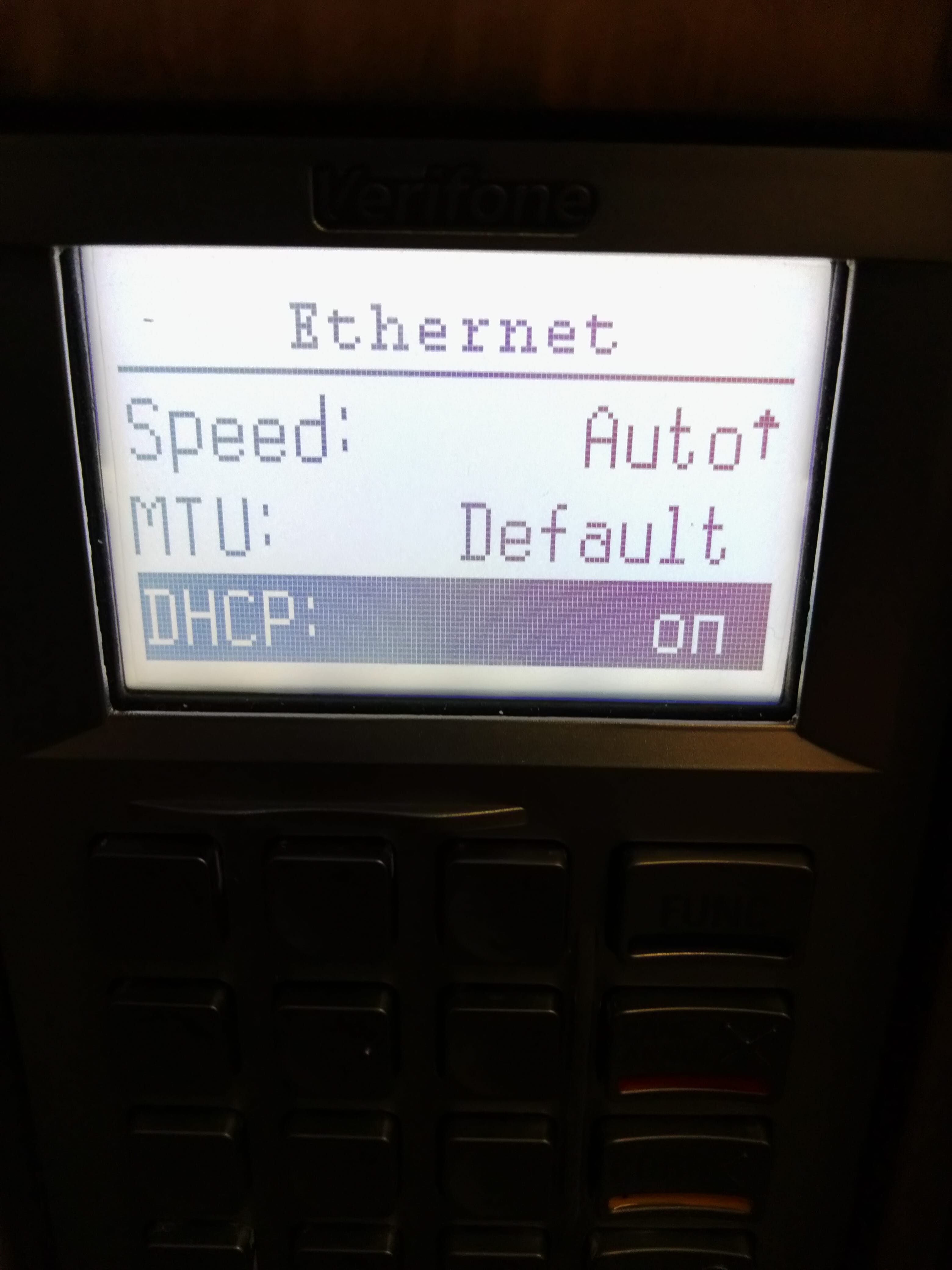

Now in Ethernet, select DHCP, select No (Hit down arrow, bottom left corner)

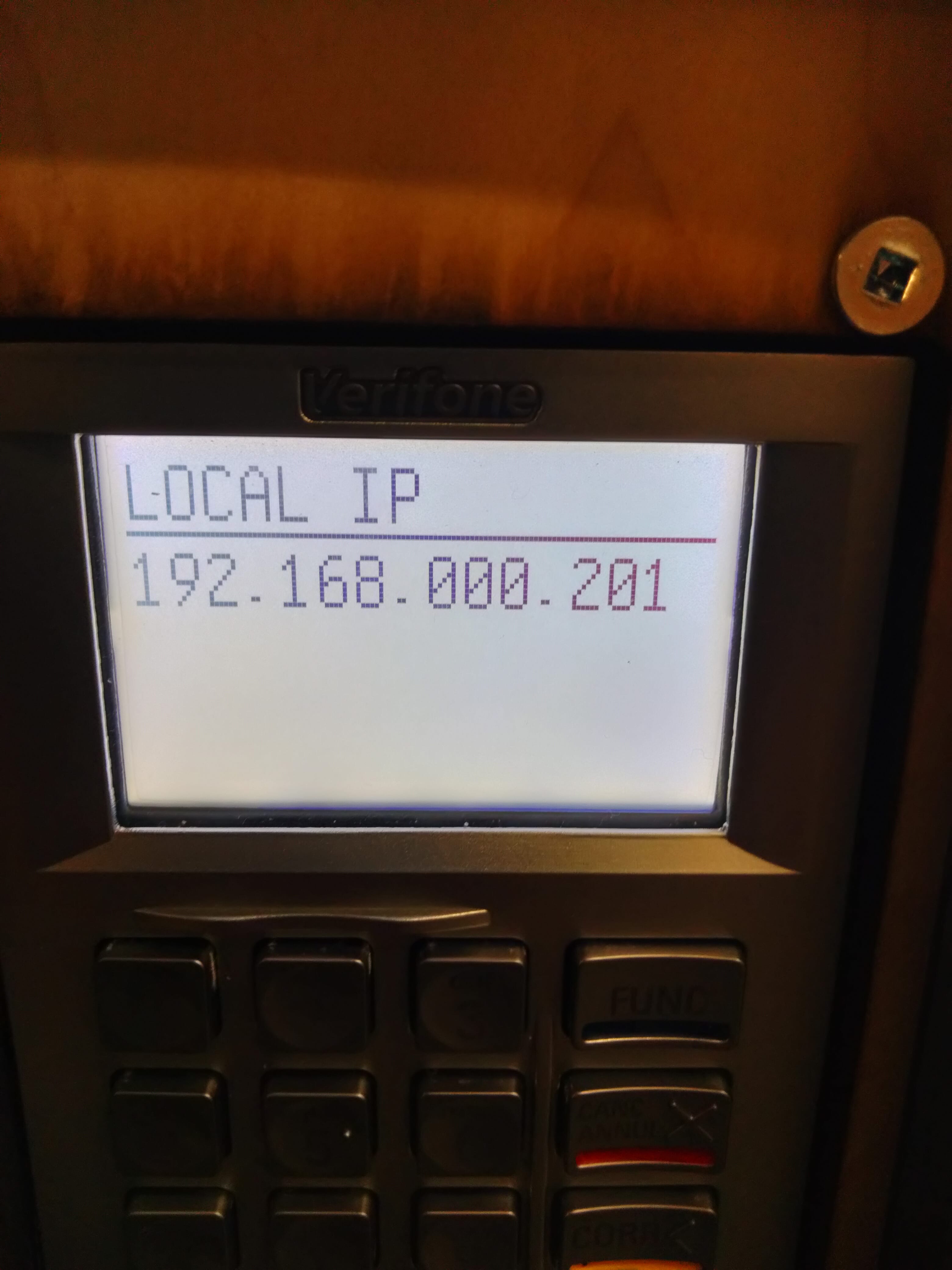

Change local IP to 192.168.001.201.

NOTE: This IP is arbitrary, and only has to match the number entered
earlier at your machine edit page. In the event that this is a reserved
IP address and you have to change it, you will have to also change the
IP at your machine edit page

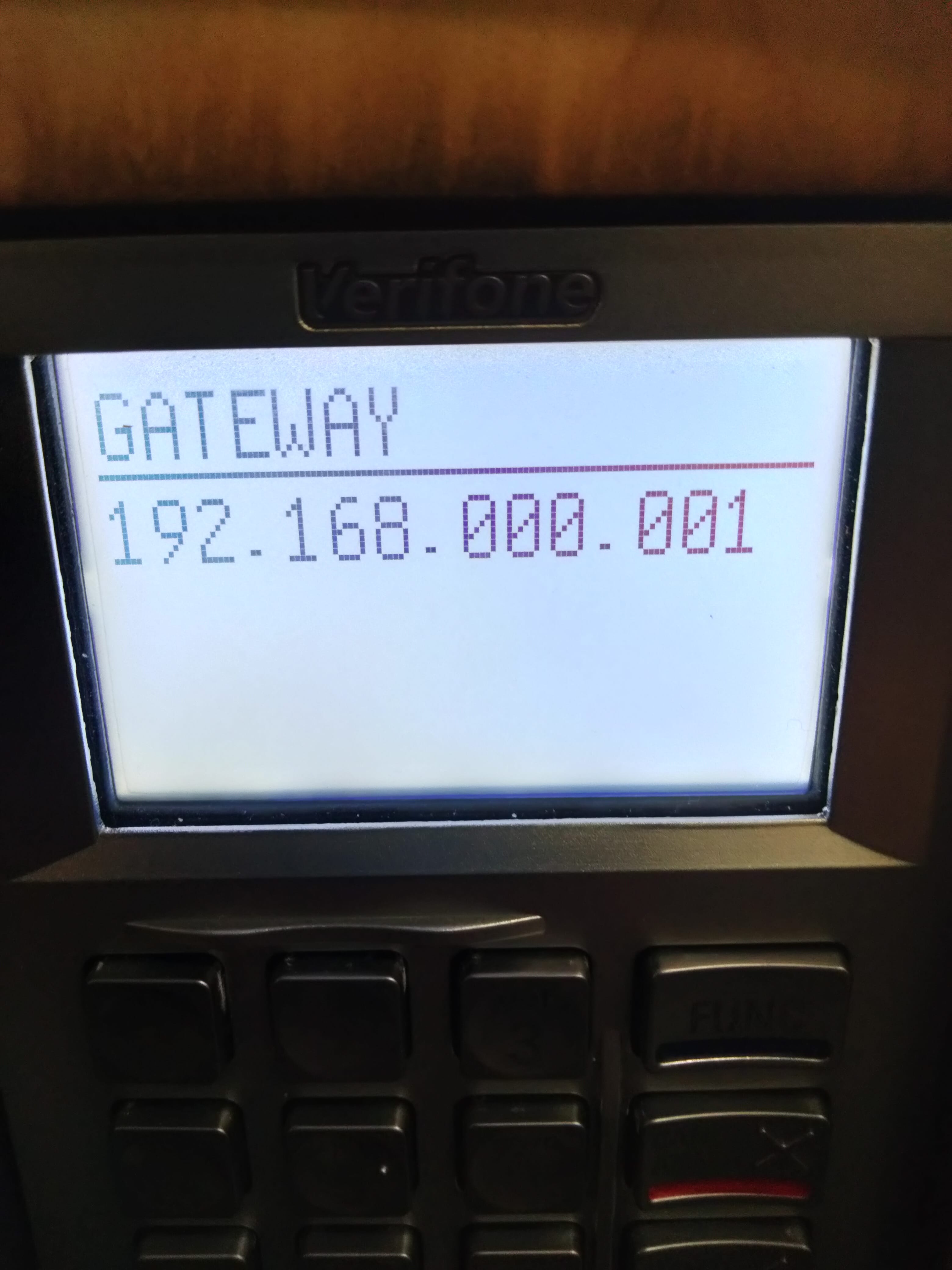

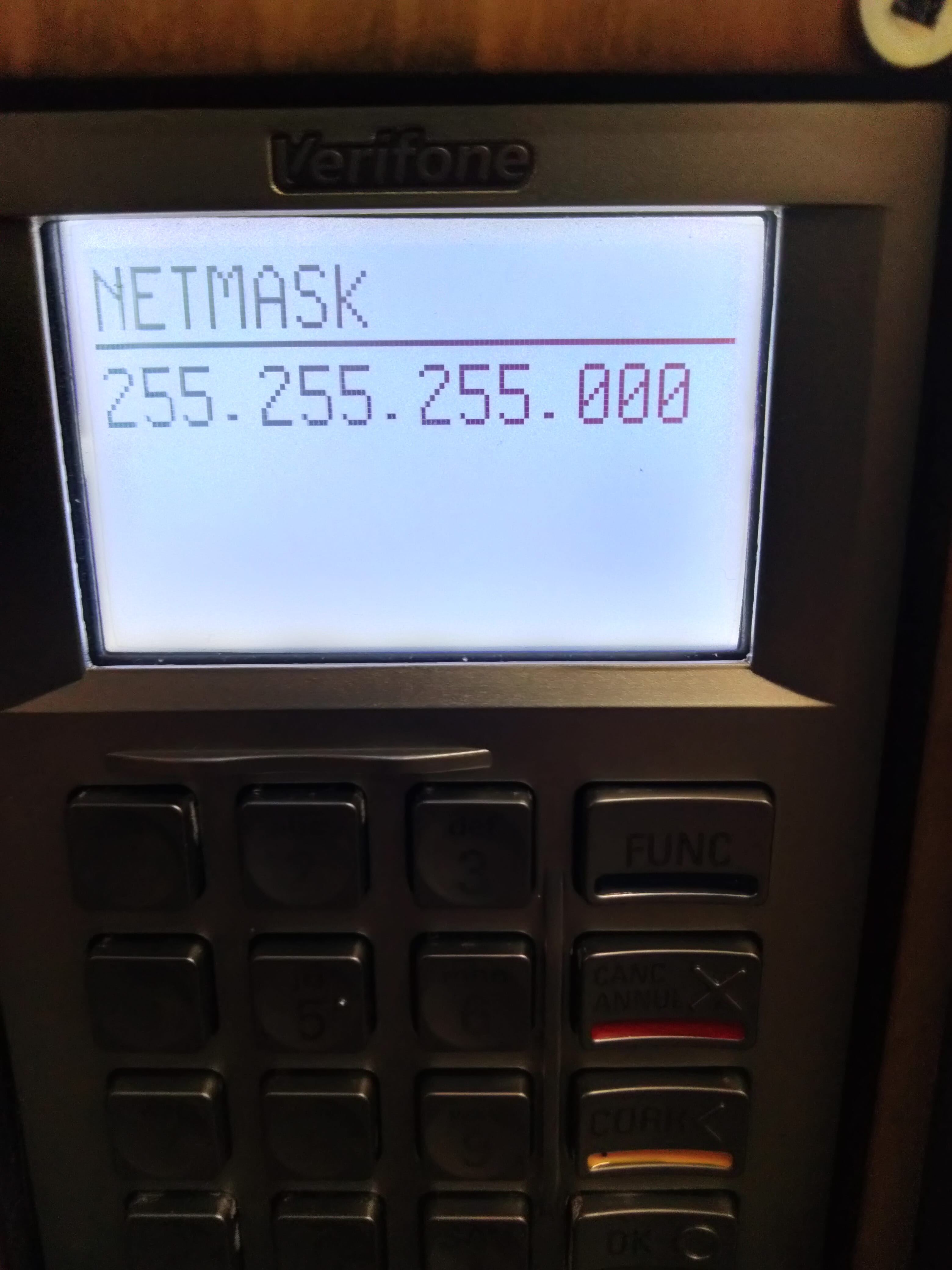

Make sure net mask is 255.255.255.000 (255.255.255.0), GW (gateway) is set to 192.168.001.001 (192.168.1.1) and DNS1 is set to 008.008.008.008 (8.8.8.8).

Navigate back to supervisor. Cancel on the Pin Pad takes you back a page.

Hit 7 on the pin pad or scroll down to Run App and hit OK.

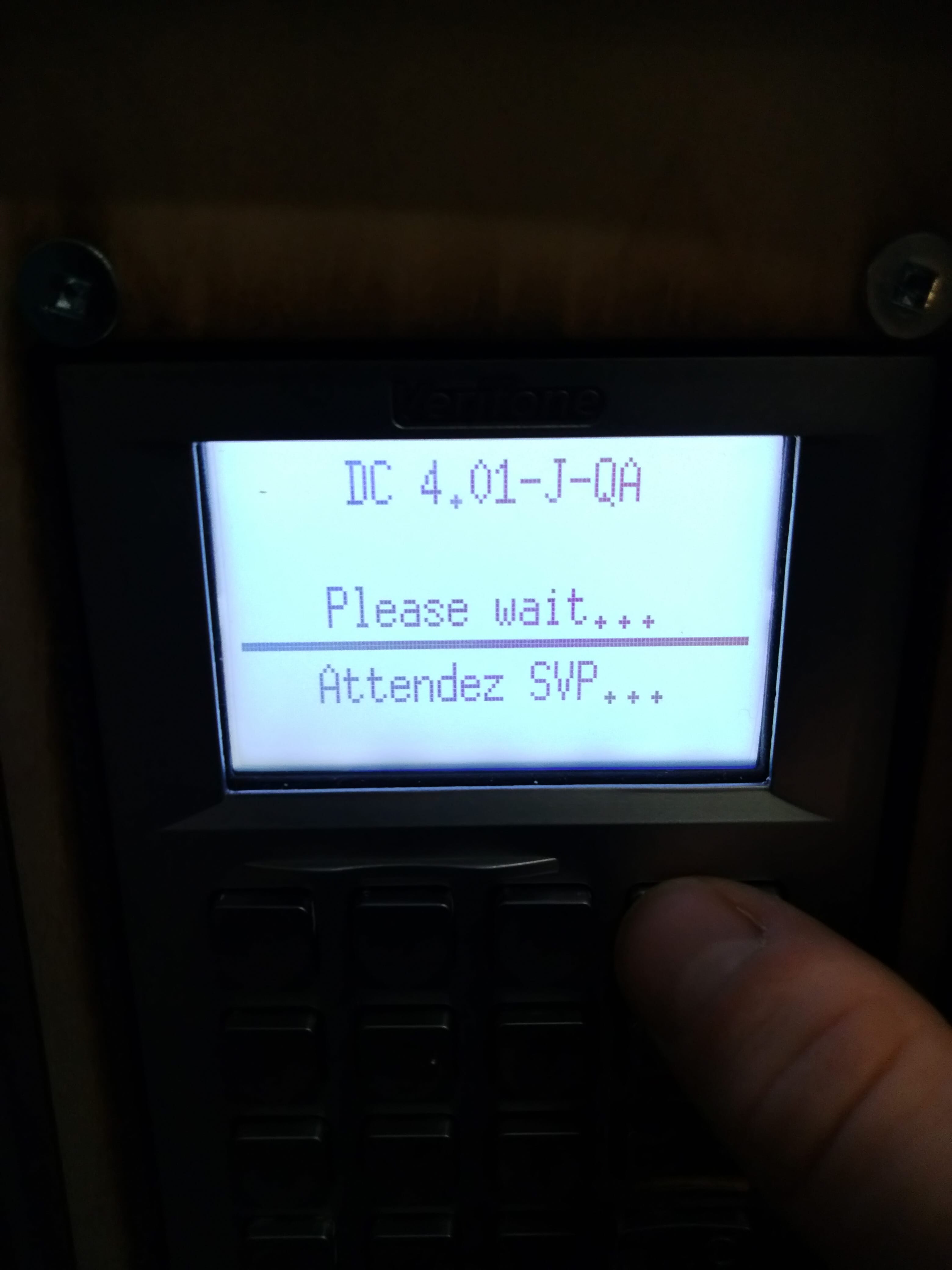

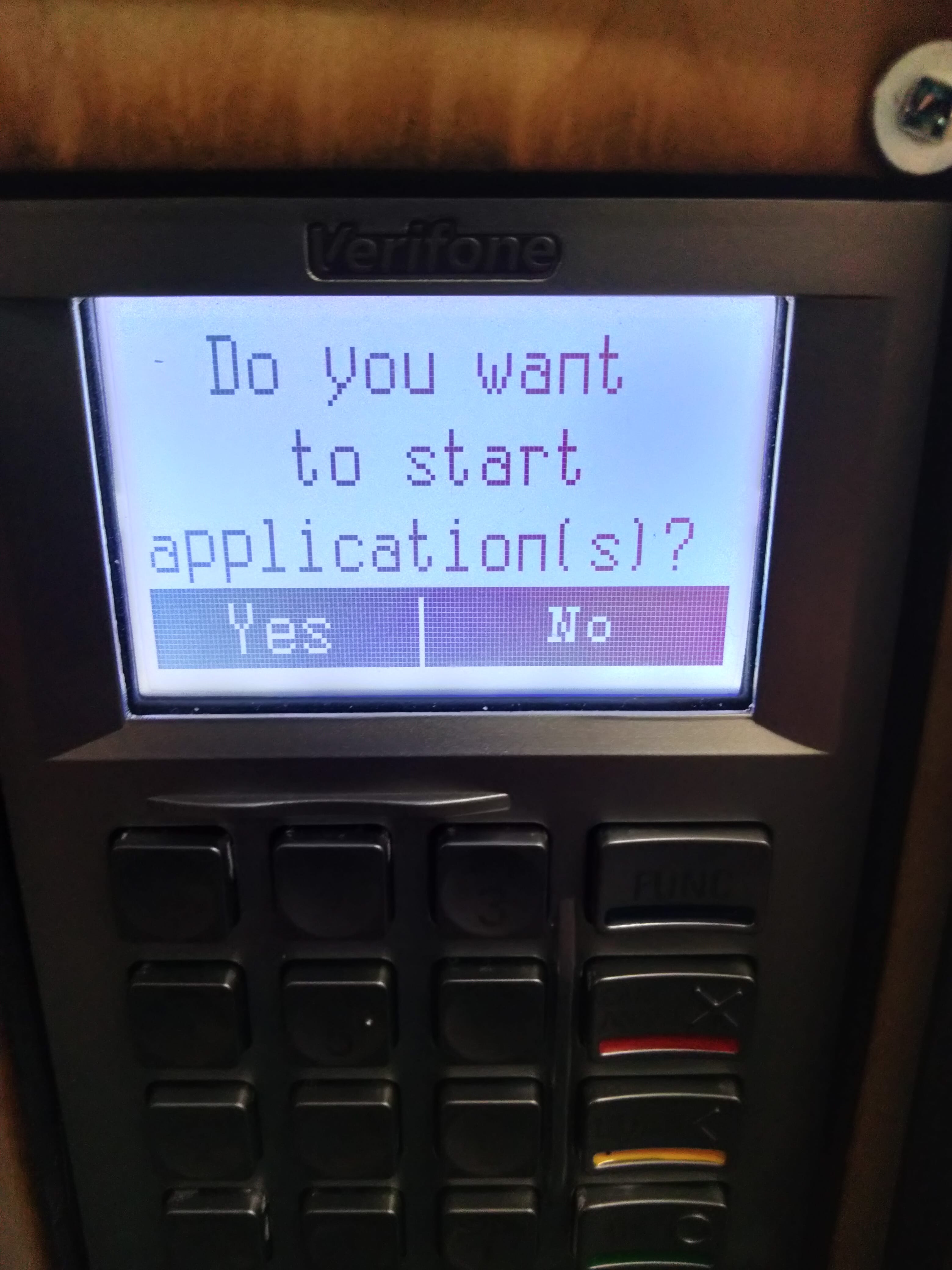

When you get to the following screen, hit FUNC on pin pad twice (I usually just spam it as soon as the screen changes).

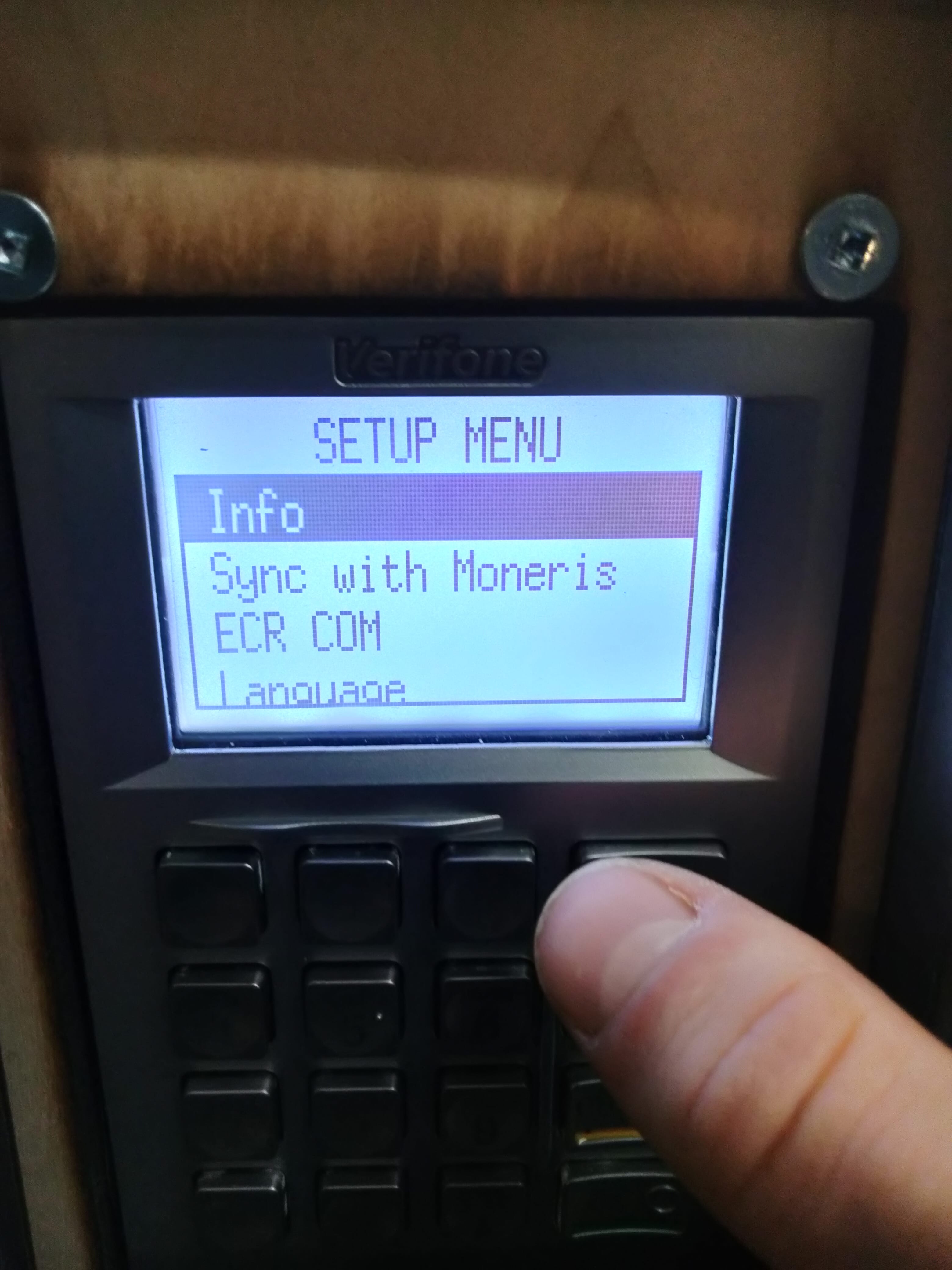

You should see the following setup menu...

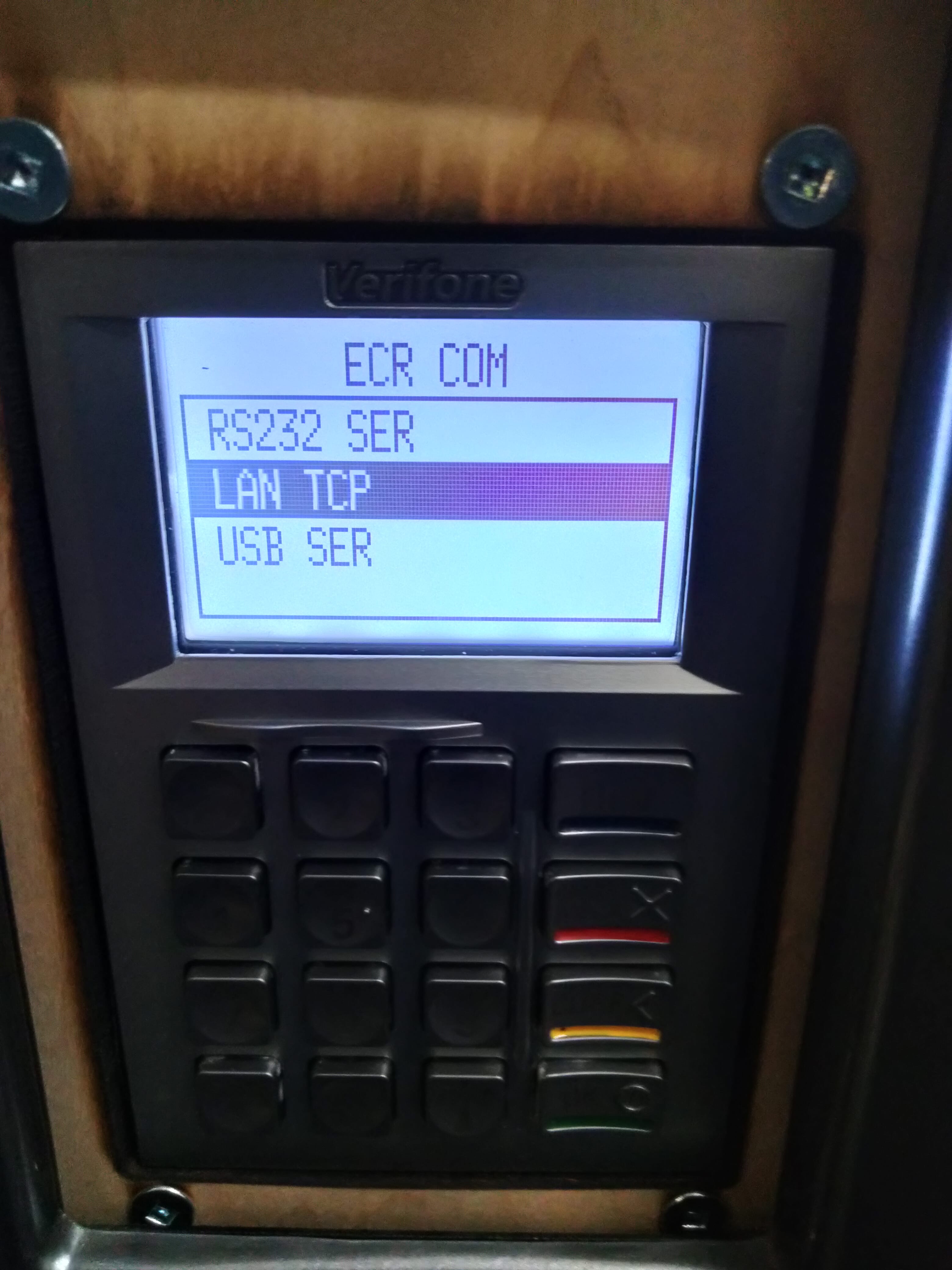

Select ECR COM, taking you to...

Select LAN TCP

Hit OK

Hit cancel to exit back to the setup menu, cancel again at the setup menu and the device should start up normally
